Fiber Optic Splicing Sequence for Terminal Box

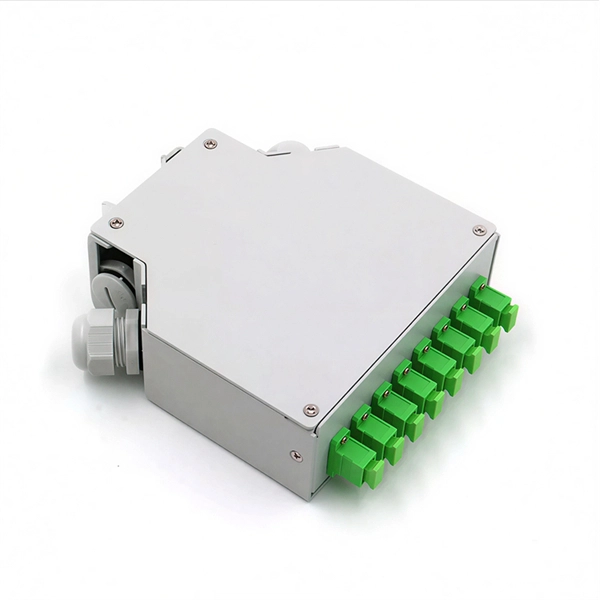

The fiber optic splicing sequence in a terminal box involves cable preparation, fiber cleaning and cleaving, splicing, and organized storage in splice trays to ensure low-loss, protected connections.Step-by-Step Splicing Sequence1. Mount the Terminal Box Secure the fiber optic terminal box on a wall or standard 19-inch rack, ensuring the front panel is accessible and cable entry points are clear . 2. Prepare the Cable Ends Strip the outer jacket and any protective coatings from the fiber cable according to manufacturer specifications. Expose the bare fiber cores while leaving sufficient length for splicing and storage . For loose tube cables, extend the tubes to the splice tray and leave about 1 meter of bare fiber on each side of the splice . 3. Clean the Fibers Use lint-free wipes and isopropyl alcohol to remove dust, dirt, or contaminants from the fiber ends . Proper cleaning is critical to minimize splice loss. 4. Cleave the Fibers Employ a precision fiber cleaver to create smooth, perpendicular end faces. Accurate cleaving ensures low insertion loss and reliable splices . 5. Splice the FibersFusion Splicing: Align fibers in a fusion splicer and weld them together for permanent, low-loss connections.Mechanical Splicing: Align fibers in a mechanical splice connector, securing them according to the manufacturer's instructions . 6. Organize Fibers in Splice Trays Place spliced fibers carefully in the splice trays, maintaining proper bend radius (typically ≥30 mm for G.657 fibers) and avoiding stress or pinching . Use tray covers and guides to secure fibers and prevent movement. 7. Manage Excess Fiber Coil any extra fiber neatly in the tray or designated storage area, ensuring no sharp bends or kinks. Use guide posts and clamping straps to maintain organization . 8. Seal and Secure the Box Ensure all cables are clamped, sealed, and grounded if metallic strength members are present. Close the terminal box securely to protect fibers from environmental exposure . 9. Test the Splices Verify splice integrity using a Visual Fault Locator (VFL) or OTDR. Check for breaks or high-loss splices, especially near tray covers or bends .Additional ConsiderationsFollow the manufacturer's instructions for specific terminal box models, as tray layouts and cable entry methods may vary .Ribbon fibers require careful routing to avoid bending in the wrong direction, while flex ribbons allow more flexibility .Label fibers and ports clearly for future maintenance and network expansion . By following this sequence, fiber optic splicing in a terminal box can achieve low-loss, organized, and durable connections suitable for FTTH, backbone, or distribution networks.
