How to lay single-mode four-core fiber optic cables outdoors

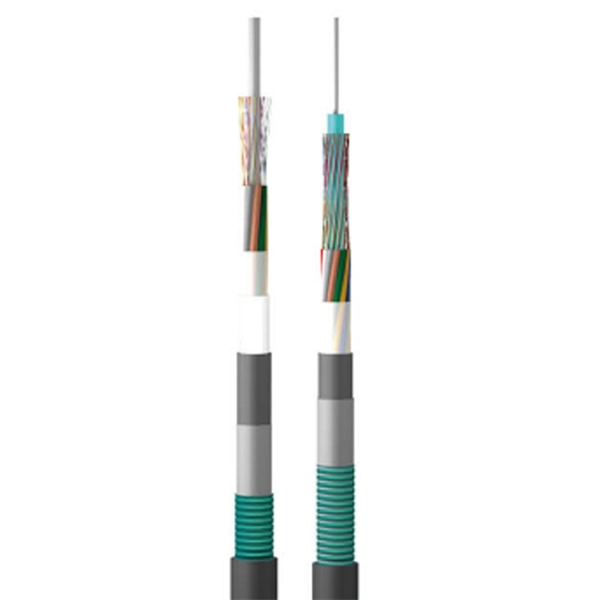

Outdoor single-mode four-core fiber optic cables can be installed using direct burial or aerial methods, following proper planning, cable handling, and testing procedures to ensure long-term performance.1. Planning and Site SurveyBefore installation, conduct a site survey to determine the route, obstacles, and environmental conditions. Identify all endpoints, intermediate junctions, and potential hazards such as roads, waterways, or power lines. Ensure permits and local code compliance are obtained. Leave 25–40% extra conduit space for future expansion and maintenance .2. Cable SelectionFor outdoor use, choose single-mode fiber for long-distance transmission. For direct burial, select armored fiber optic cables to protect against rodents and mechanical damage. For aerial installation, use PE-sheathed cables with reinforcing ribs for UV and weather resistance . Four-core cables are sufficient for small networks, with extra cores reserved for redundancy.3. Laying MethodsDirect Burial: Dig trenches 36–48 inches deep to avoid frost damage. Place the cable in a protective conduit or directly in the soil with warning tape above it .Aerial Installation: Use poles or existing infrastructure. Ensure proper tension and support to prevent sagging or mechanical stress.Conduit or Duct Installation: Pull or blow the cable through pre-installed conduits. Maintain a minimum bend radius of 15 times the cable diameter during installation and 20 times during construction .4. Cable HandlingAvoid sharp bends, kinks, or excessive pulling force.Synchronize the rotation of the cable reel with the laying speed, typically around 15 meters per minute.Leave 5–10 meters of slack at both ends for splicing and maintenance.Label cables and maintain detailed installation records .5. Splicing and TerminationUse fusion splicing or mechanical splicing to join fibers.Ensure precise alignment to minimize signal loss.Protect splices in splice closures suitable for outdoor conditions.6. Testing and DocumentationTest the installed fiber using an Optical Time-Domain Reflectometer (OTDR) to detect faults, measure attenuation, and verify performance.Record all test results and maintain documentation for future troubleshooting and network upgrades .7. Maintenance ConsiderationsInspect cables periodically for physical damage or environmental impact.Keep splice closures sealed and clean to prevent moisture ingress.Plan for easy access to slack loops for future expansions or repairs . By following these steps, you can ensure a reliable, long-lasting outdoor installation of single-mode four-core fiber optic cables that meets industry standards and provides high-speed connectivity over long distances.
