Rack Wiring Frame Installation

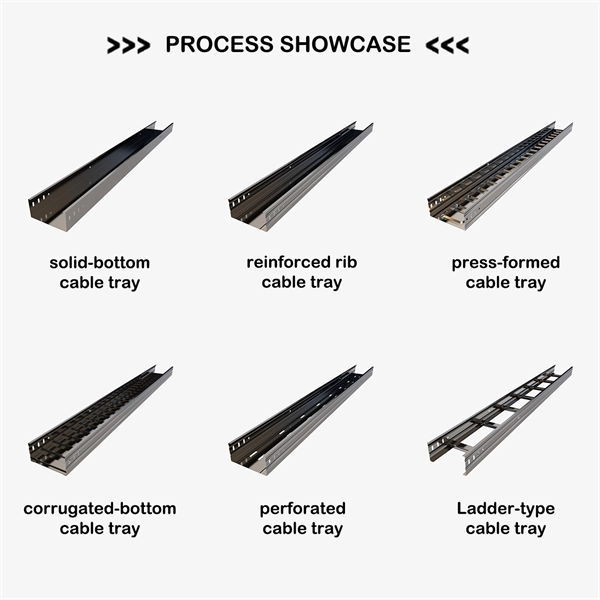

Proper rack wiring involves careful planning, organized cable management, and strategic equipment placement to ensure efficiency, cooling, and maintainability.Planning and PreparationBefore installation, choose a suitable location for the rack that allows adequate airflow, cooling, and protection from dust or moisture. Maintain an ambient temperature between 22–26°C and humidity around 40% to prevent cable and hardware damage. Ground the rack to avoid electrical discharges that could harm IT systems and data carriers. Draw a detailed plan of where each component—servers, switches, patch panels, and UPS units—will be installed to optimize space and airflow .Rack Selection and LayoutSelect a rack type and size based on your equipment. Standard racks are typically 19-inch wide, with floor-standing racks often 42U tall. Wall-mounted racks are suitable for smaller setups. Consider depth, IP rating, and door type (metal or glass) for security and cooling efficiency. Modular racks allow flexible placement of servers, patch panels, and circuit breakers .Cable ManagementOrganize cables using vertical and horizontal cable managers. Use short, appropriately sized cables to reduce clutter while leaving enough slack for future adjustments. Separate power and data cables to minimize interference. Label both ends of each cable clearly to simplify maintenance and troubleshooting. Common cable types include Cat6/Cat6a Ethernet, fiber optic, HDMI, and IEC power cables .Equipment InstallationInstall heavier equipment like servers and UPS units at the bottom of the rack to maintain stability. Place patch panels and switches at accessible heights for easier maintenance. Ensure adequate spacing between devices to allow airflow and prevent overheating. Use rack rails and mounting brackets to secure equipment firmly .Final Checks and MaintenanceAfter wiring, verify all connections, ensure proper grounding, and check airflow paths. Regularly inspect cables for wear, maintain labeling, and adjust cable management as new equipment is added. A well-organized rack reduces downtime, simplifies troubleshooting, and improves overall network performance . By following these steps, your rack installation will be efficient, safe, and scalable, supporting both current and future IT infrastructure needs.
