Settings for Secondary Distribution Boxes

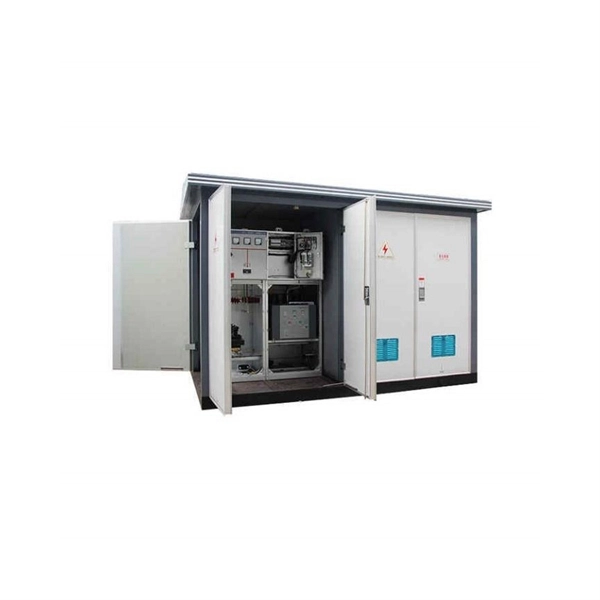

Secondary distribution boxes (subpanels) are configured to safely distribute power from a main panel or transformer to localized circuits, with proper ratings, grounding, and protection devices.Purpose and FunctionA secondary distribution box, or subpanel, serves as a localized power distribution point downstream from the main service panel. It allows a single feeder from the main panel to be divided into multiple smaller circuits, reducing long cable runs and improving circuit management for specific areas such as workshops, basements, or remote structures . In industrial or utility contexts, secondary unit substations combine transformers and low-voltage switchgear to supply concentrated loads efficiently .Electrical SettingsFeeder Connection: The subpanel receives power through a dedicated feeder from the main panel, protected by a two-pole breaker or main lugs .Breaker Configuration: Each branch circuit in the subpanel should have its own breaker or fuse, sized according to the load and wire gauge .Neutral and Ground Separation: Unlike the main panel, the subpanel's neutral and ground buses should remain isolated to prevent parallel neutral paths .Load Calculation: Determine the total amperage required for the subpanel based on connected loads to select the appropriate panel size and feeder rating .Voltage and Distribution System: In software or design tools, assign the subpanel to a secondary distribution system that matches the voltage and load requirements, ensuring proper integration with transformers and upstream panels .Installation ConsiderationsLocation: Install in dry, accessible areas with good ventilation, avoiding damp or obstructed spaces. Maintain NEC-required clearances: at least 3 feet in front and 30 inches wide .Enclosure: Use NEMA- or IP-rated boxes suitable for indoor or outdoor use. Steel enclosures are durable for industrial settings, while plastic may suffice for indoor residential setups .Grounding and Bonding: Ensure proper grounding with non-corrosive pads or busbars, and verify connections with a multimeter before energizing .Protection Devices: Include surge protectors, breakers, and fuses for each circuit. Consider modular designs for easier future upgrades .Maintenance: Label all circuits clearly, perform visual inspections, and schedule periodic testing to ensure long-term reliability .Advanced Substation FeaturesFor secondary unit substations, designs may include dual bus configurations with tie breakers to improve service continuity. Transformers are often close-coupled to the low-voltage switchgear to minimize cable lengths, and cores are cooled via natural convection or radiators. Monitoring devices for oil level, temperature, and pressure can be integrated for operational safety .SummaryProper settings for secondary distribution boxes involve correct feeder sizing, breaker selection, neutral-ground separation, and adherence to safety codes. Placement, enclosure type, and protection devices are critical for both residential and industrial applications. In design software, panels must be assigned to the correct distribution system to ensure accurate load management and circuit integration .
