Optical Power Meter Calibration Line

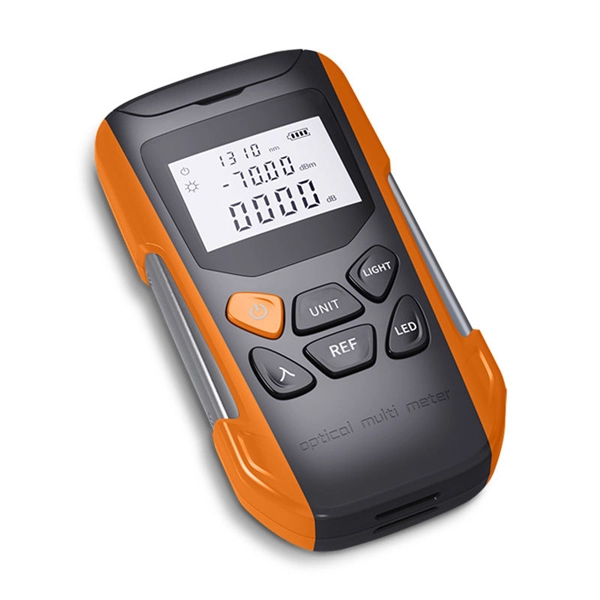

Optical power meters should be calibrated annually using NIST-traceable standards to ensure accurate measurements across relevant wavelengths.Calibration Frequency and PurposeOptical power meters (OPMs) should typically be calibrated every 12 months to maintain measurement accuracy and reliability. Calibration ensures that the meter's readings correspond to known reference values, accounting for detector drift, aging, and environmental effects such as temperature and humidity changes that can affect photodiode responsivity (amps per watt) at each wavelength .Calibration ProcedureReference Standards: Calibration is performed by comparing the meter under test to a working standard, which is itself calibrated against a national standard such as NIST in the U.S., NRC-CNRC in Canada, PTB in Germany, or NPL in the UK .Measurement Setup: The meter is tested at multiple wavelengths (commonly 850, 1310, and 1550 nm for fiber optics) and power levels. Both collimated-beam and connectorized-fiber configurations may be used, depending on the intended application .Detector Considerations: Most OPMs use Si, Ge, or InGaAs photodiodes, whose output is wavelength-dependent. Calibration must account for spectral responsivity, uniformity, and nonlinearity of the detector .Adjustment and Certification: If deviations from the reference standard exceed specifications, the meter's internal calibration tables are adjusted and re-tested. A calibration certificate is issued, and a sticker indicating the next calibration due date is applied .Best Practices Between CalibrationsCross-Check: Verify meter performance by comparing readings with another known-good meter.Zeroing: Ensure the meter reads zero when no light is present.Connector Cleaning: Clean fiber connectors and sensor surfaces to prevent contamination and measurement errors.Wavelength Selection: Always set the meter to the wavelength corresponding to the fiber system under test .Traceability and StandardsCalibration traceability ensures that measurements are linked to national standards, providing confidence in accuracy and international recognition. The calibration chain typically follows: national standard → working standard → device under test. This traceability is critical for compliance with industry and international measurement standards .SummaryRegular calibration of optical power meters is essential for accurate fiber optic measurements. Using NIST-traceable standards, accounting for detector characteristics, and following proper maintenance and verification procedures ensures reliable readings and minimizes measurement uncertainty across all relevant wavelengths .
